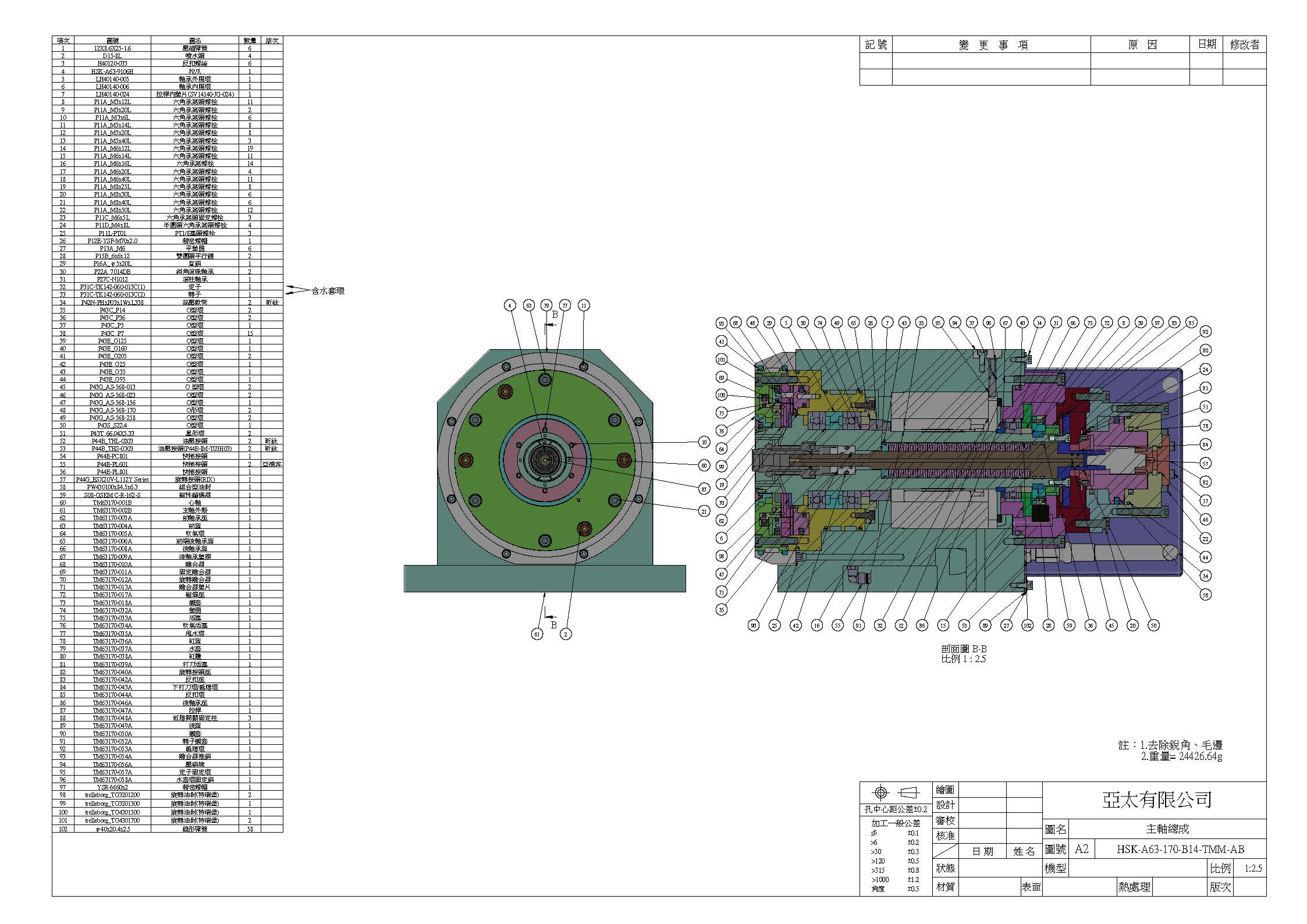

HSK-A63-170-B14-TMM-AB

Housing OD (mm): φ170
Max. Speed (rpm): 12000 RPM
Taper: HSK-63A
Bearing Spec: 3-7014/ N1012
Bearing Bore Diameter (mm): φ70
Lubrication: Grease
Clamping Force (kgf): 1000±100 kgf
CTS: Optional
Tool Unclamping Hydraulic Cylinder: Yes
Front Air Curtain: Yes
Installation Method: Vertical
Weight: ~ 70 kg
