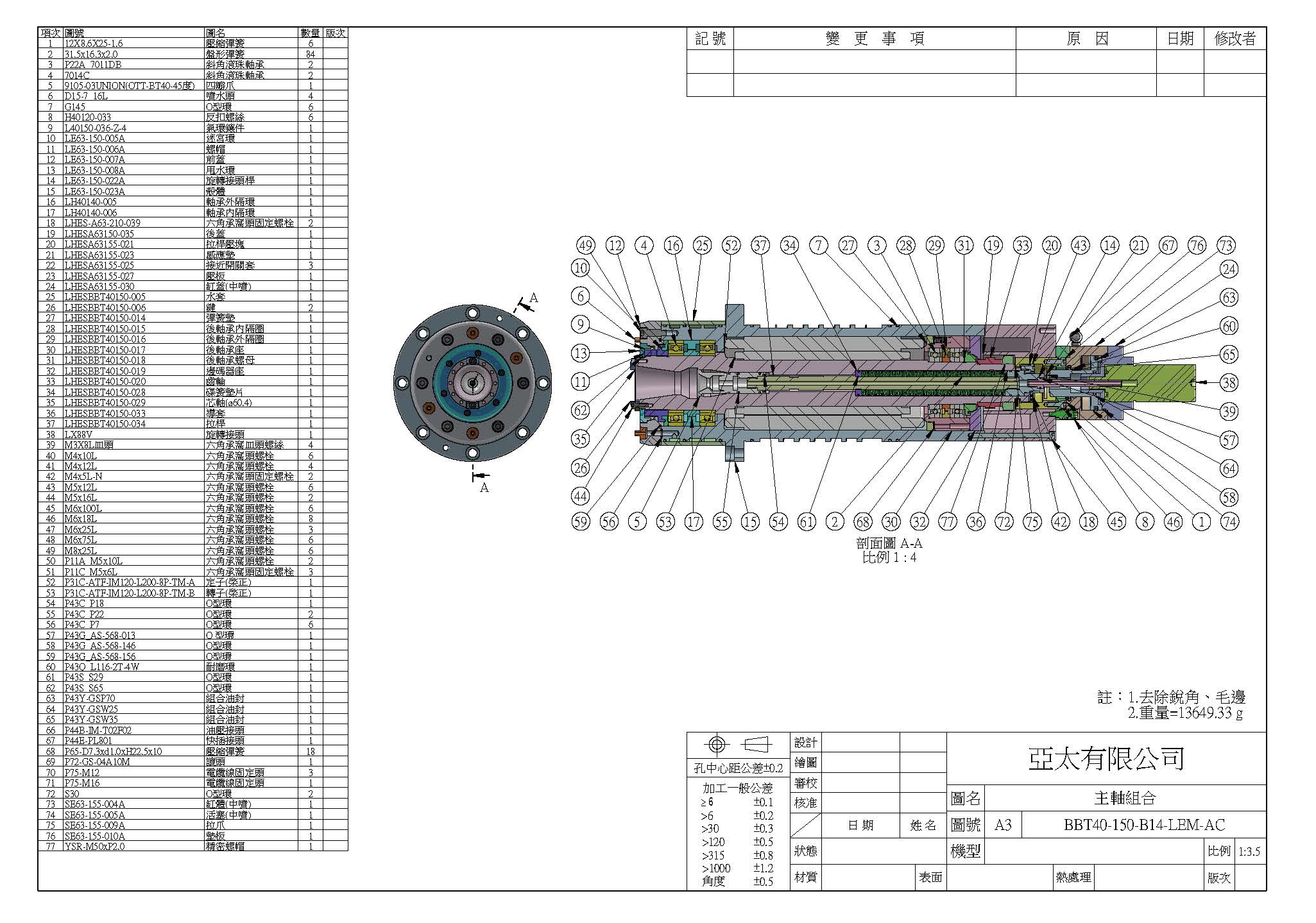

BBT40-150-B14-LEM-AC

BBT40-150-B14-LEM-AC

BBT40-150-B14-LEM-AC
BBT40-150-B14-LEM-AC
Housing OD (mm): φ150
Max. Speed (rpm): 24000 RPM
Taper: BBT40
Bearing Spec: 2-7014/ 2-7014
Bearing Bore Diameter (mm): φ70
Lubrication: Grease
Clamping Force (kgf): 1000±100 kgf
Stator and Rotor Dimensions: Ø120xØ60.3xL200
CTS: Optional
Tool Unclamping Hydraulic Cylinder: Yes
Front Air Curtain: Yes
Installation Method: Vertical
Weight: ~ 70 kg
Download Add to inquiry
電機參數
電機規格 ATF-IM120C-L200-6P-DG
電壓(V) 380 380 380 380 380
電流(A) 43.8 44.1 37.3 29.5 25.6
頻率(Hz) 309 517 824 1024 1225
轉速(rpm) 6000 10000 16000 20000 24000
功率(Kw) 22.5 22.5 18 14.5 12.5
扭距(Nm) 35.8 21.5 10.7 6.9 5
極數(P) 6
