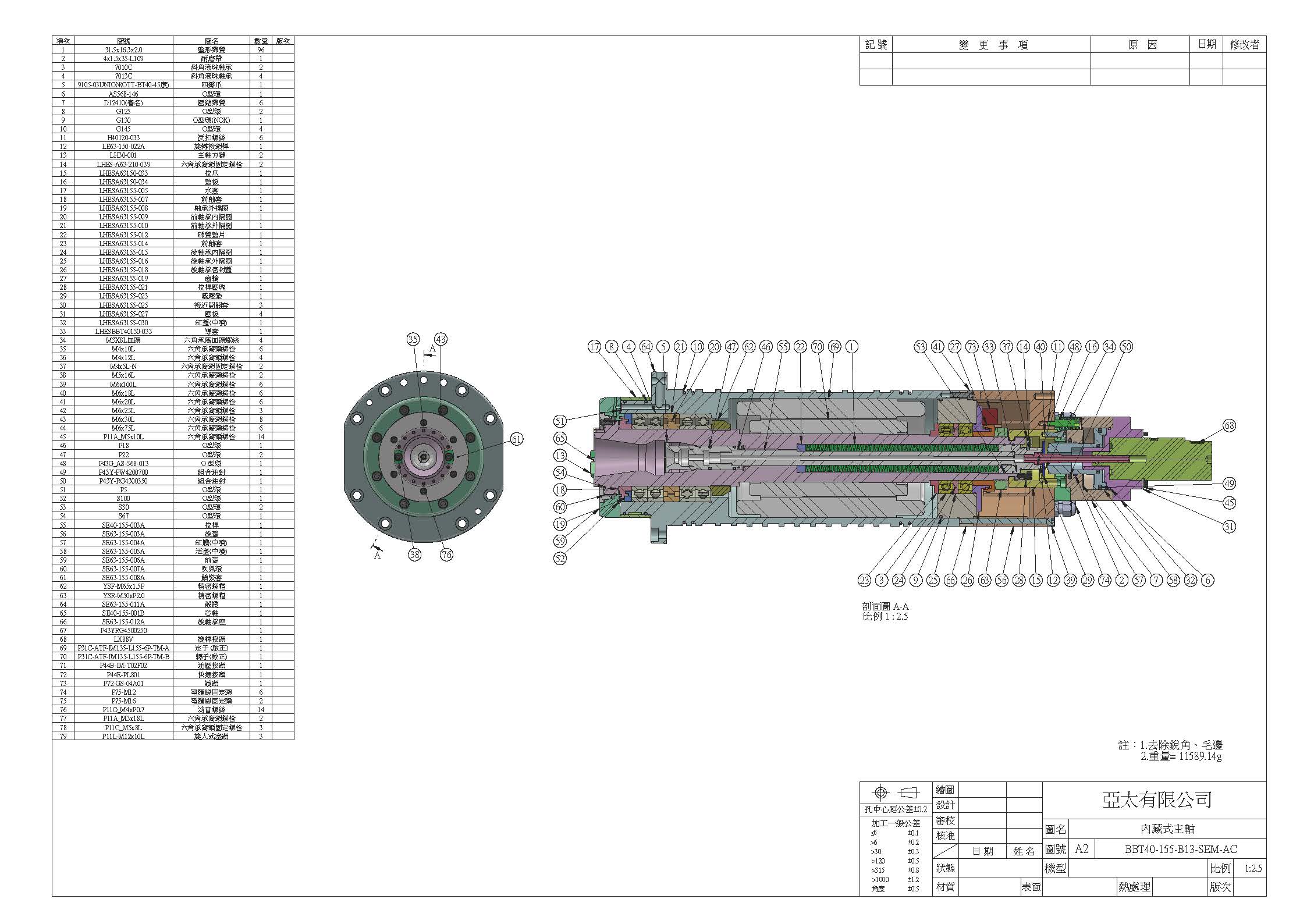

BBT40-155-B13-SEM-AC

BBT40-155-B13-SEM-AC

BBT40-155-B13-SEM-AC
BBT40-155-B13-SEM-AC
Housing OD (mm): φ150
Max. Speed (rpm): 24000 RPM
Taper: BBT40
Bearing Spec: 4-7013/ 2-7010
Bearing Bore Diameter (mm): φ65
Lubrication: Grease
Clamping Force (kgf): 1000±100 kgf
Stator and Rotor Dimensions: Ø135.3xØ55xL155
CTS: Optional
Tool Unclamping Hydraulic Cylinder: Yes
Front Air Curtain: Yes
Installation Method: Vertical
Weight: ~ 70 kg
Download Add to inquiry
電機參數
電機規格 ATF-IM135B-L155-6P-SD
電壓(V) 380 380 380 380 380
電流(A) 38.5 38.7 36.4 30 26.1
頻率(Hz) 308 514 824 1025 1286
轉速(rpm) 6000 10000 16000 20000 24000
功率(Kw) 20 20 17 14 12
扭距(Nm) 31.8 19.1 10.1 6.7 4.8
極數(P) 6
