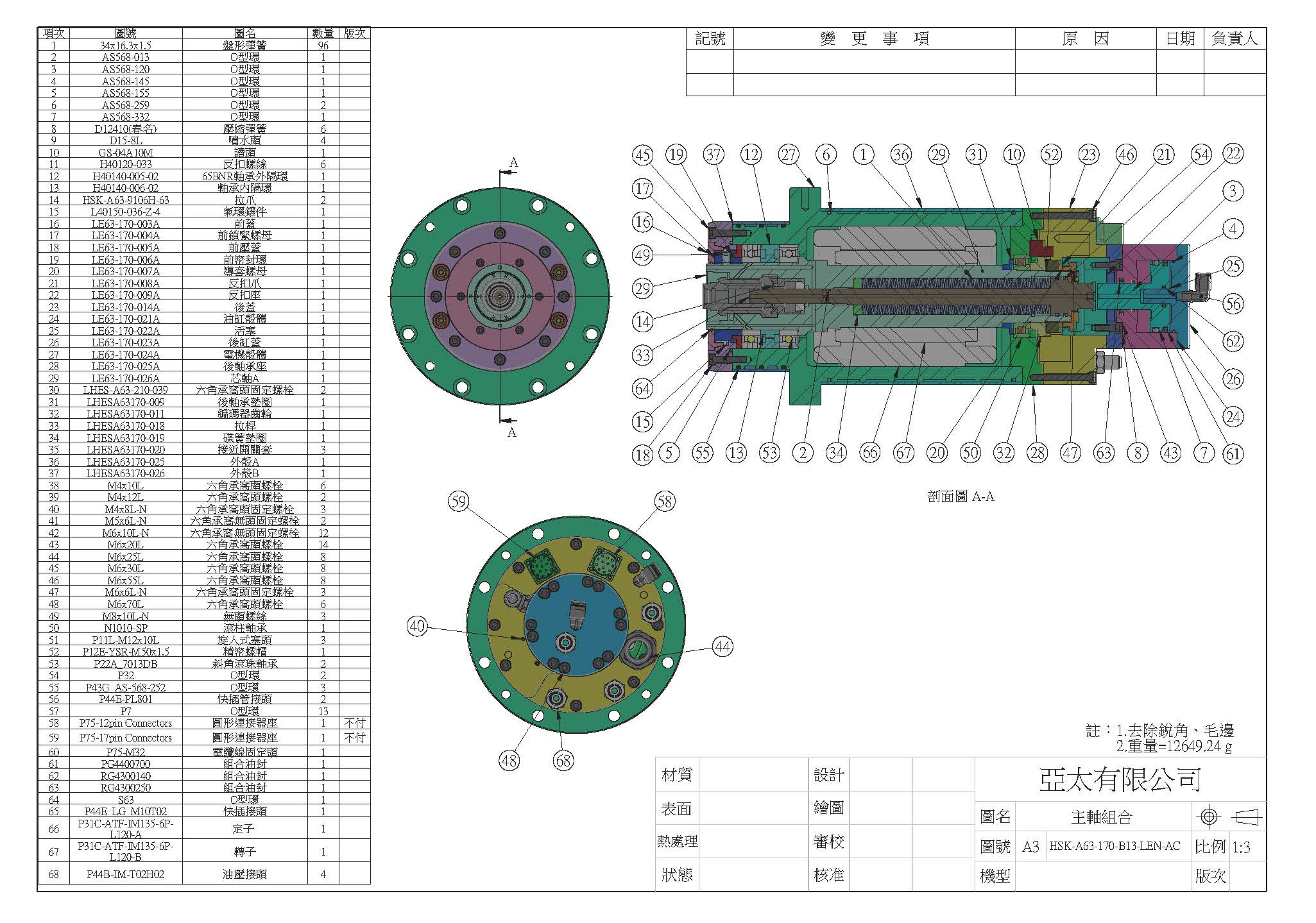

HSK-A63-170-B13-LEN-AC

HSK-A63-170-B13-LEN-AC

HSK-A63-170-B13-LEN-AC
HSK-A63-170-B13-LEN-AC
Housing OD (mm): φ170
Max. Speed (rpm): 24000 RPM
Taper: HSK-A63
Bearing Spec: 2-7013/ N1010
Bearing Bore Diameter (mm): φ65
Lubrication: Grease
Clamping Force (kgf): 1000±100 kgf
Stator and Rotor Dimensions: Ø135.3xØ59.8xL120
CTS: None
Tool Unclamping Hydraulic Cylinder: Yes
Front Air Curtain: Yes
Installation Method: Vertical
Weight: ~ 70 kg
Download Add to inquiry
電機參數
電機規格 ATF-IM135B-L120-6P-SE
電壓(V) 380 380 380 380 380
電流(A) 29 28.6 28.1 28.1 22.2
頻率(Hz) 307 513 823 1032 1288
轉速(rpm) 6000 10000 16000 20000 24000
功率(Kw) 15 15 13.5 12 10
扭距(Nm) 23.9 14.3 8.1 5.7 4
極數(P) 6
